Push-In Wire Connector with Locking Mechanism and Test Point, 28-14 AWG

Wire Connections That Lock Tight With One Simple Push

You're mid project and the wires keep slipping out of the connector again. You're twisting, taping, and redoing the same connection three times because nothing holds. These push-in connectors lock wires in place with one push and stay secure without tape or twisting.

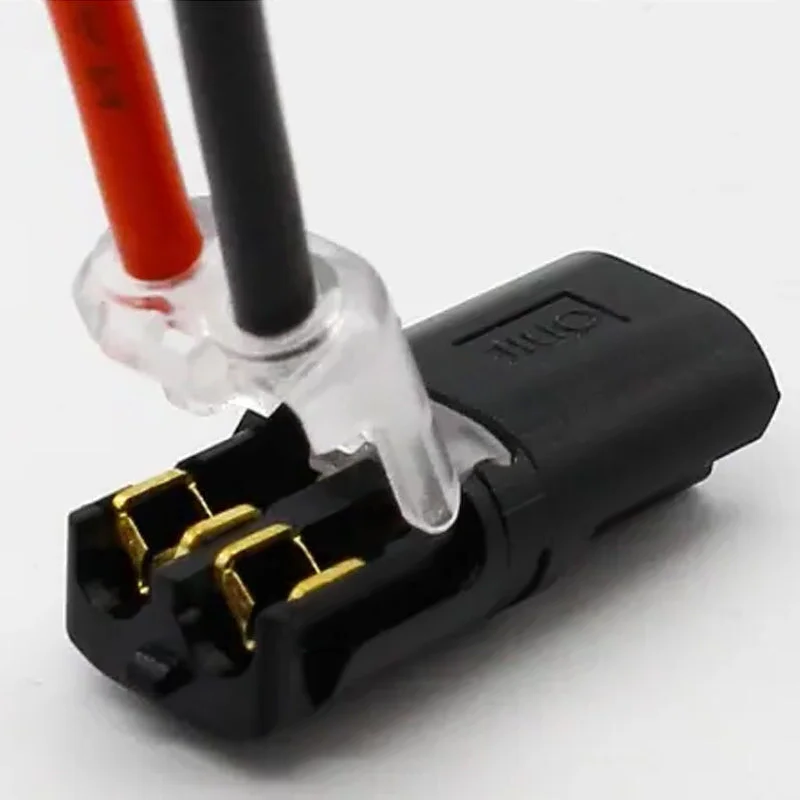

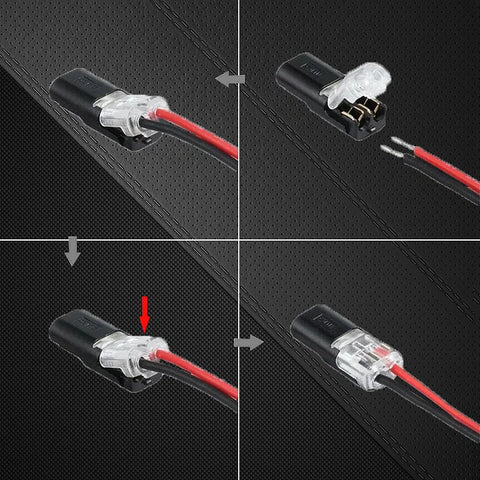

Push the stripped wire into the connector opening until you hear the click. The internal lock grabs the wire and holds it firmly in place without slipping back out. Pull the wire to test the connection and it stays locked until you press the release tab.

Each connector handles wires from 0.08 to 2.5 mm² in diameter, covering 28 AWG through 14 AWG sizes. The housing keeps both wire paths separated inside the same unit. It weighs 0.03 ounces per piece and fits in tight junction boxes or behind outlet plates.

The test hole on the side lets you check voltage with a meter probe without pulling the connector apart. The insulated housing protects both wire terminals from accidental contact. You can reuse each connector across different wire gauges and setups without damaging the internal lock mechanism.

• PUSH-IN LOCK MECHANISM: Insert wire once and the internal lock grabs it tight, holding connections secure without tape or wire nuts.


• DUAL WIRE COMPATIBILITY: Works with solid copper wire and stranded wire types across the same connector for mixed wiring tasks.


• SIDE TEST POINT ACCESS: Check voltage through the external test hole using a meter probe without removing insulation or disconnecting wires.


• WIDE GAUGE RANGE: Accepts wire sizes from 0.08 to 2.5 mm² covering 28 AWG down to 14 AWG for lighting and outlet circuits.


• REUSABLE DESIGN: Press the release tab to unlock wires and reuse the same connector across different wire sizes and electrical setups.


• SEPARATED WIRE PATHS: Internal housing keeps both wire terminals isolated preventing accidental shorts and maintaining safe low voltage connections.


• COMPACT HOUSING: Weighs 0.03 ounces per connector and fits inside crowded junction boxes, outlet boxes, and tight wall cavities easily.

PUSH-IN WIRE CONNECTOR SPECS

• Wire Range: 0.08 to 2.5 mm²


• Gauge Compatibility: 28 to 14 AWG


• Unit Weight: 0.03 ounces


• Type: Double Wire Push-In


• Application: Low Voltage Electrical


• Quantity: 100 Pieces

PACKAGE INCLUDES:

• 100 x Double Wire Push-In Connectors
